Head-mounted Medical Zoom Magnifier

Product Instruction:

The medical surgical magnifier is a precision optical device designed for medical surgery. Its core function is to help doctors improve accuracy and safety in delicate operations by magnifying and optimizing the field of view.

• Provides a large field of view, long depth of field and high-resolution magnification effect, making it easier to observe deep tissues, reduce visual fatigue and avoid image distortion

• The integrated lighting system provides sufficient lighting for the surgical area, solving the inconvenience of the traditional instrument reflector and headlight being separated.

• Independently adjustable interpupillary distance design, compatible with various face shapes, different angles of adjustment, adapt to different body position requirements, the overall design is lightweight, the temples are adjustable, and long-term use reduces fatigue

• The magnification function enables doctors to clearly identify subtle structures, reduce the risk of operating errors, and shorten surgery time and trauma.

ENT，Cardiology，Neurosurgery，Ophthalmology，Stomatology，Plastic Surgery, Urology，Obstetrics & Gynecology，General Surgery

Products Name: Head-mounted Medical Zoom Magnifier

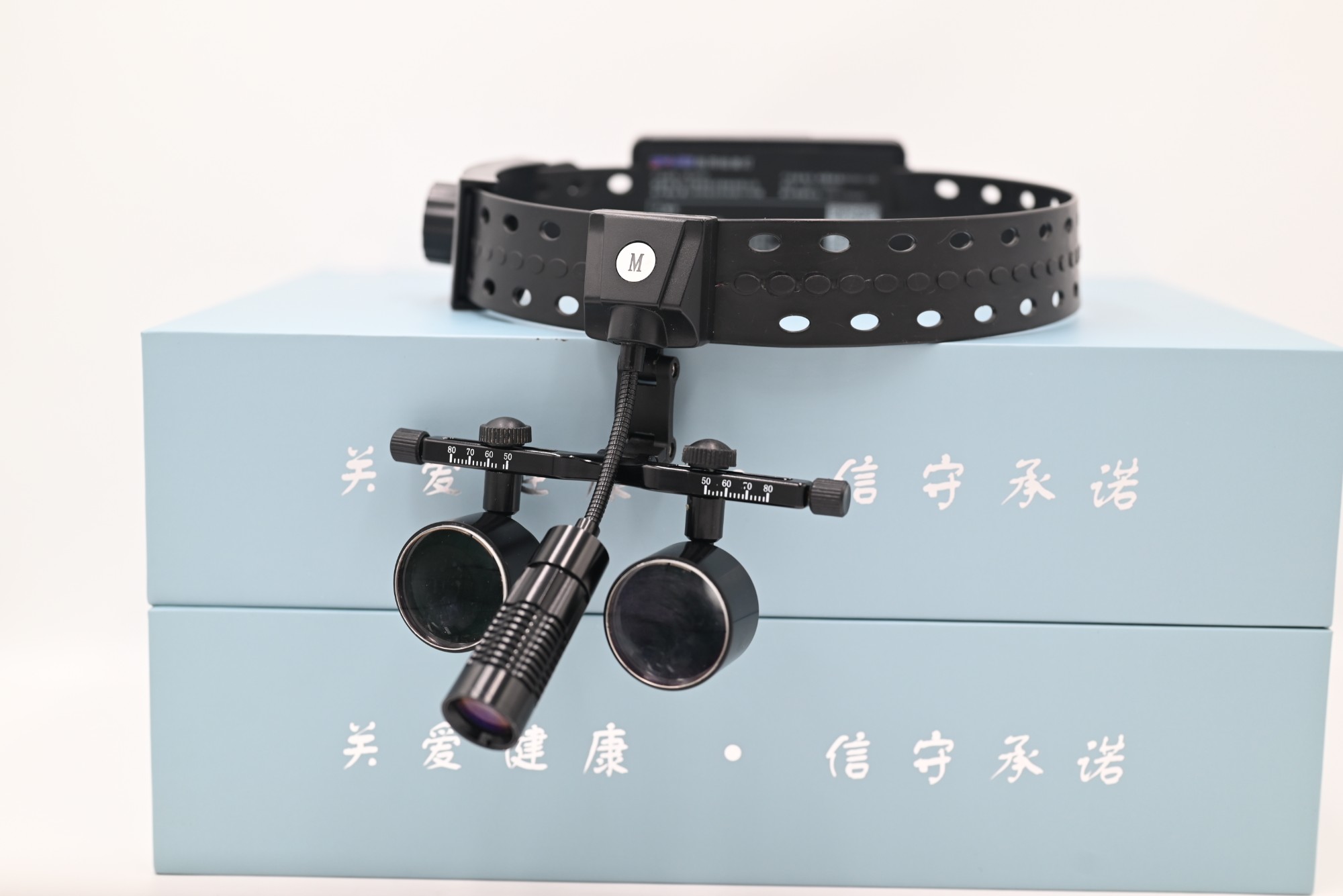

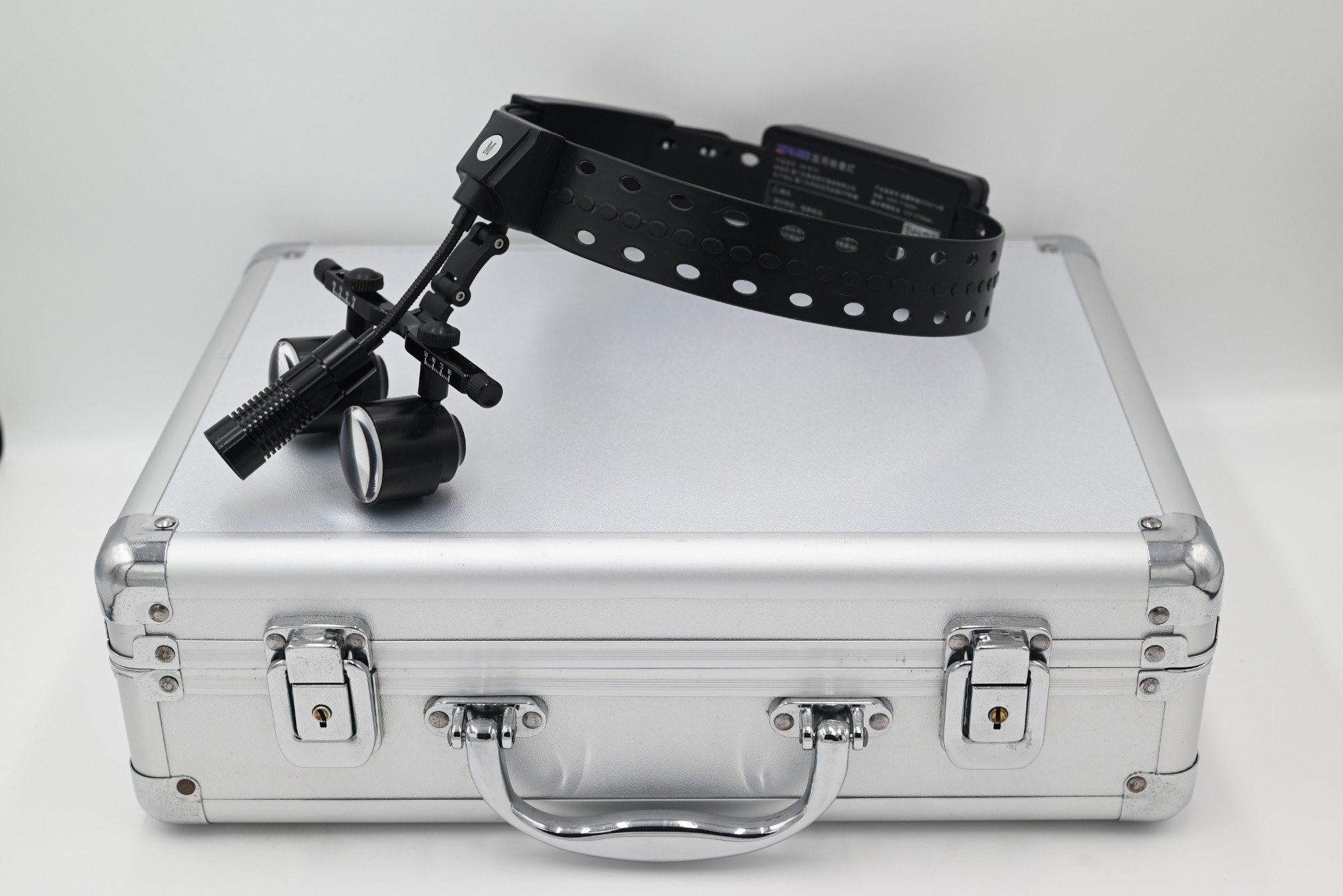

     Head-Mounted Variable Zoom Magnifier (2.0-3.5x) with surgical headlight

Accessories:

• Zoom Lens

• Hinge

• Adjustment Knob

Working distance and Magnification:

• Magnification:2.0-3.5 x

• Viewing Distance: 300-650 (mm)

• Field of View : 70-130 (φmm)

• Interpupillary Distance: 40-80 (mm)

Feature:

• Galilean optical system was used

• The hinge provides full flexibility to adjust the viewing Angle and adapt to different postures

• The damping structure is infinitely adjustable within ±180 degrees front and back, and ±30 degrees up and down, which completely changes the traditional magnifying glass that affects surgical observation due to inadequate angle adjustment

• It doesn't need to other accessories to achieve coaxial lighting match with Medical LED surgical headlight

• Screw-type adjustment of pupil distance makes adjustment more convenient and adapts to the needs of different users

• High-definition optical imaging design allows viewing field diameter of 70-130mm

• The adjustable magnification is 2.0-3.5

• It supports a variety of wearing methods and can be used with medical headlight or frame type

• The adjustment knob is designed separately which have the left and right knob are more convenient and practical
